Fixation NPA 3.45

ITAL-SOLAR

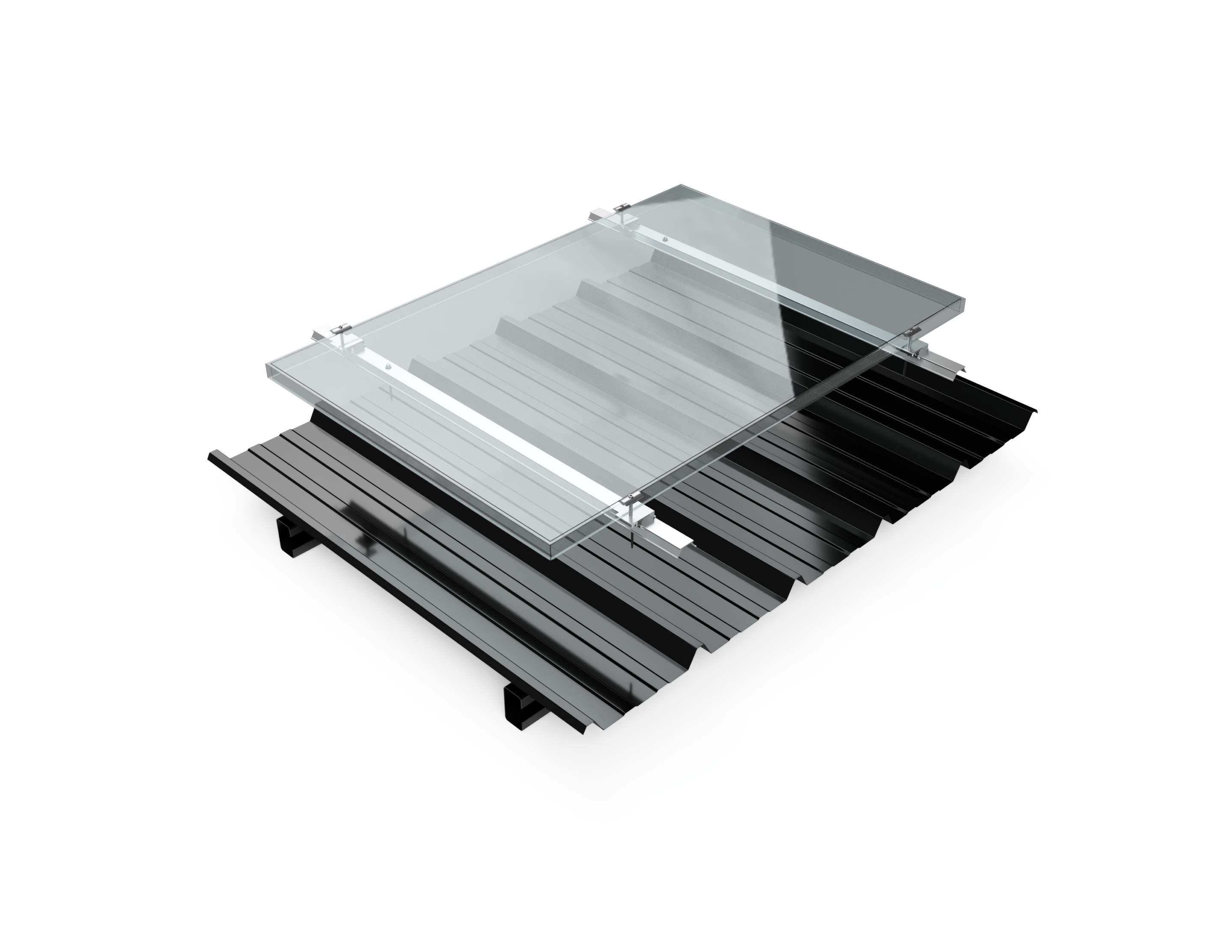

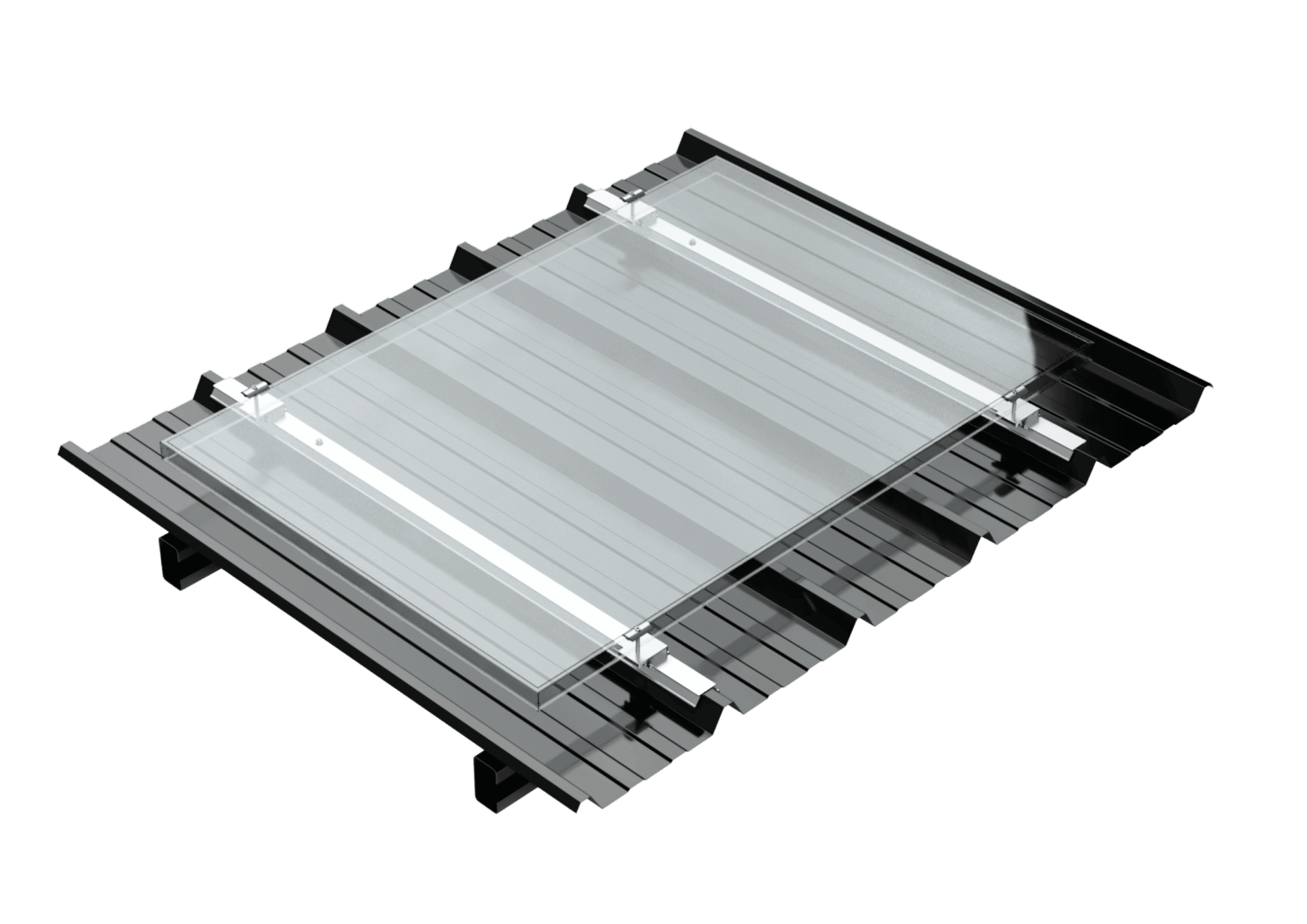

Photovoltaic system mounted in the purlin and on the deck

Ital-Solar is a photovoltaic mounting system for installing solar panels on sloped roofs. It is used on buildings with either an uninsulated roof deck (steel deck with trapezoidal profile) or sandwich panel roof.

ETN

Steel sheet

Lanscape installation

Documentation & Downloads

Request the manual

Contact us for certification

Ask for a service

The advantages of ITAL-SOLAR

Advantages of the system

One keyword: durability

Ital-Solar is a photovoltaic mounting system for installing solar panels on sloped roofs. It is used on buildings with either an uninsulated roof deck (steel deck with trapezoidal profile) or sandwich panel roof.

A premium metal: aluminium

The Ital-Solar photovoltaic process uses mostly aluminium . This metal has many advantages including being light, strong, recyclable and highly resistant to corrosion.

Is your power plant project located on the seafront?

The New Technology Survey (Enquête de Technique Nouvelle – ETN) which certifies the Ital-Solar mounting process approves the installation of this system up to 1 km from the coast, excluding conditions in which it is directly affected by sea water and sea spray (seafront). Dome Solar teams must use A4 grade stainless steel fasteners if your future installation is within 3 km of the seafront, so that they are resistant to the marine climate in the long term.

ITAL-SOLAR

Technical data

USE New roof or total or partial renovation
Distance between purlins: 2 m on uninsulated roof deck and 3 m on sandwich panel roof (possible to provide calculations for any project outside the scope of use)
TYPE OF ROOF Standard steel deck and sandwich panel
MODULE POSITION Landscape
MATERIALS Aluminium and stainless steel
SYSTEM WEIGHT 1 kg/m2
SUPPORTING STRUCTURE Metal or wooden frame
SYSTEM COMPONENTS 3.3 m aluminium rail, universal aluminium/stainless steel clamp, external clamp with aluminium/stainless steel finish, generator connector, PVC seal, Module Grounding Connector, Rail Grounding Connector
OPTION

Nylon cable gland

Module Earth Connector (CTM) aluminum 6060

Steel deck screw

VIDEOS

Ital-Solar

Dome Solar’s Ital-Solar system is a mounting solution for photovoltaic panels on trapezoidal sheets and sandwich panels.
This solution is certified by a New Technology Survey (Enquête de Technique Nouvelle – ETN).

Benefit from training and first worksite assistance

Our experts share their tips and practical advice for quick and efficient installation
