ROOF-SOLAR TILTED TPO

The mounting for photovoltaic panels thermally welded to a synthetic membrane

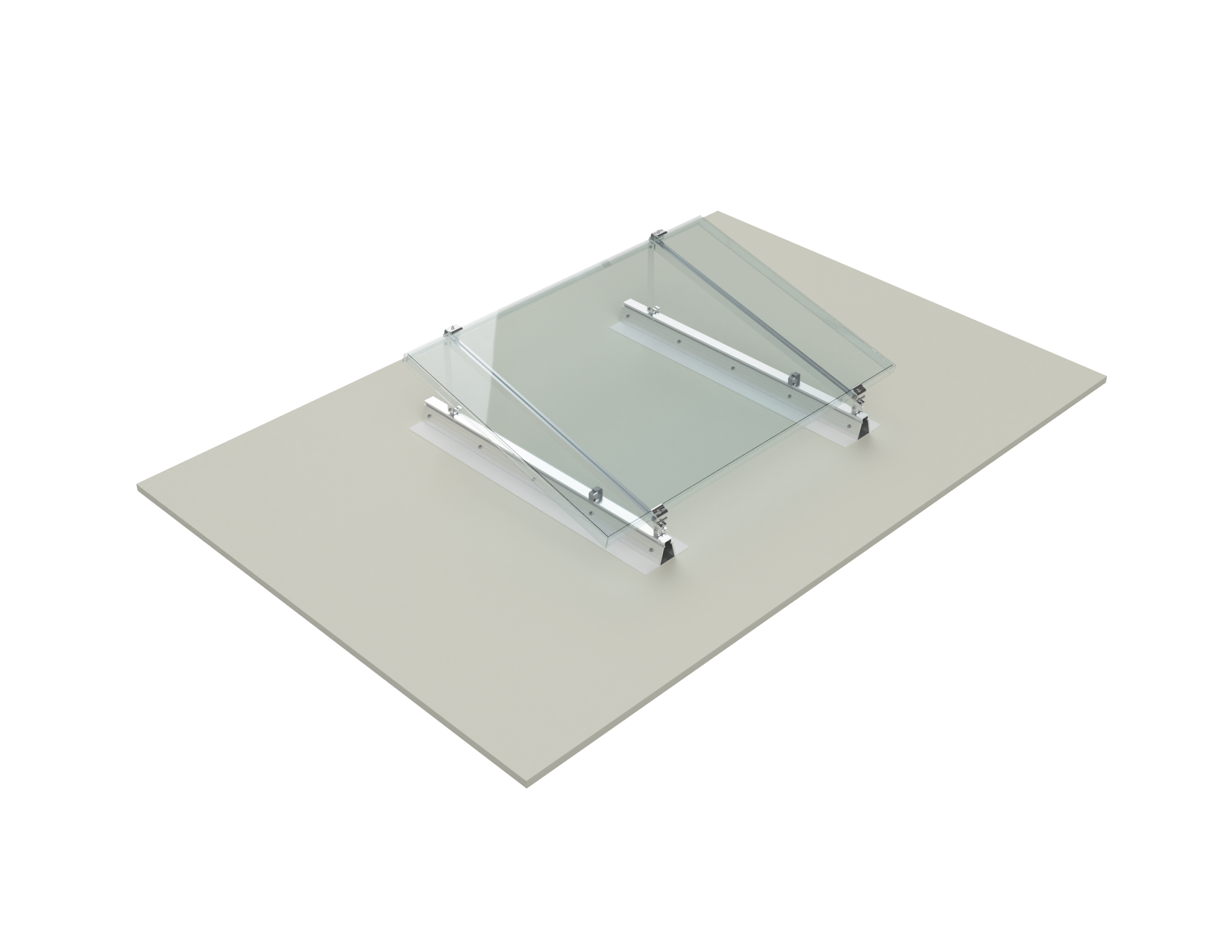

Roof-Solar Tilted TPO is a photovoltaic mounting system used for installing solar panels on flat synthetic roofs. It is used on buildings with TPO membrane roofs. Without ballasting or perforation of the membrane, the installation of photovoltaic panels is facilitated.

The use of 60 or 120 cm Roof-Solar Tilted TPO rails results in a linear load distribution (and not a point load), thus reducing the risk of puncturing.

ETN

Portrait Orientation

Documentations &
Téléchargements

Request the manual

Contact us for certification

icone service rouge

Ask for a service

The advantages of ROOF-SOLAR TILTED TPO

Advantages of the system

A certified mounting

A resistant solution, the Roof-Solar Tilted TPO mounting has undergone several tests to be certified by a New Technology Survey (Enquête de Technique Nouvelle – ETN) by Alpes Contrôles: resistance to climatic loads, watertightness, condensation, corrosion resistance. All the results of these tests show the reliability of this mounting system.

A minimum load

Roof-Solar Tilted TPO allows solar panels to be installed on the roof in such a way that the added load on the building structure is as low as possible. The pre-assembled rails with the TPO retaining strips are thermally welded to the TPO synthetic membrane. Ballasting is therefore not required.

Tilting in the blink of an eye

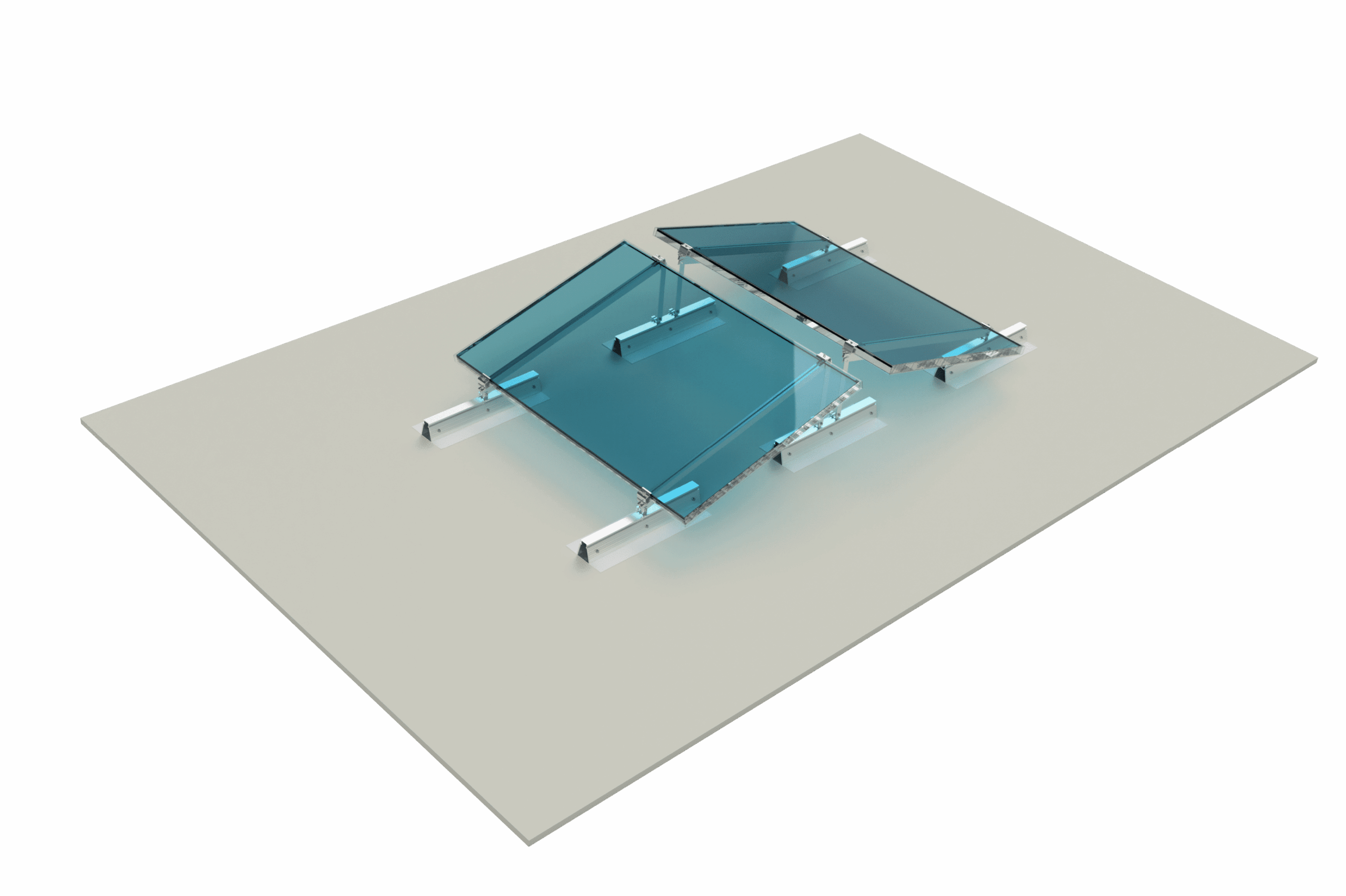

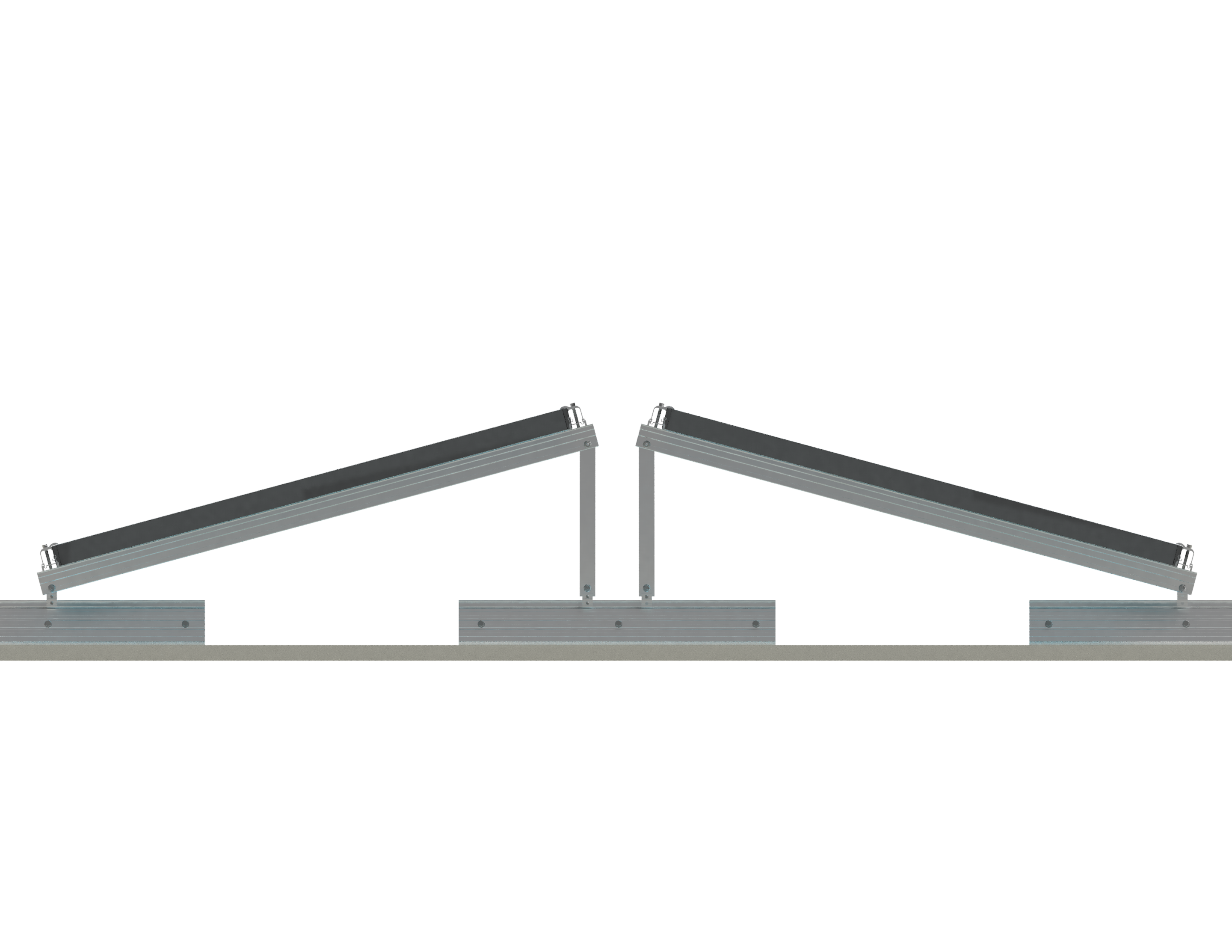

The tilting structure can be assembled prior to mounting on the roof. Light and easy to handle, it is attached to the rail in just a few seconds and gives you the option to tilt your solar panels at 10°. If you want a different tilting angle, this will require a custom-made structure.

A premium metal

The Roof-Solar Tilted TPO photovoltaic process uses 95% aluminium. This metal has many advantages including being light, strong, recyclable and highly resistant to corrosion.

ROOF-SOLAR TILTED TPO

Technical data

USE Enclosed building, new roof or total or partial renovation
TYPE OF ROOF Concrete, ribbed steel sheets, wood. Insulation of compressibility class C. Synthetic waterproofing membrane.
MODULE POSITION Portrait
MATERIALS Aluminium, stainless steel and TPO
SYSTEM WEIGHT 4,5 kg/m²
SYSTEM COMPONENTS 0.6 or 1.2 m aluminium rail, retaining strip, flat bar (10°), “Y” rail, external clamp with aluminium/stainless steel finish, Module Grounding Connector (MGC), waterproofing patch, cable guide

Discover all our products

New Dome Solar catalogue

SIMPLE TO IMPLEMENT

Dome Solar Roof-Solar TPO and Roof-Solar Tilted TPO photovoltaic systems are certified by a New Technology Survey (Enquête de Technique Nouvelle – ETN).

The membrane is installed by mechanical fastening, i.e. strips are fixed using suitable screws and plates. Joints are then hot air welded. The upper and lower membranes then become one.

INSTALLING SOLAR PANELS ON A TPO FLAT ROOF

Rails of Roof-Solar TPO and Roof-Solar Tilted TPO photovoltaic mounting are hot air welded (read more about the steps here) to the TPO membrane manually or in a semi-automated way. Once External Clamps and then Universal Clamps have been clipped on, photovoltaic panels can be installed. Due to the heat-welding technique, no ballast needs to be added to the building’s roof, which reduces the weight. Moreover, membrane perforation is not required so there is no risk of water leaking in.
