EB-SOLAR
The economical but solid photovoltaic mounting system

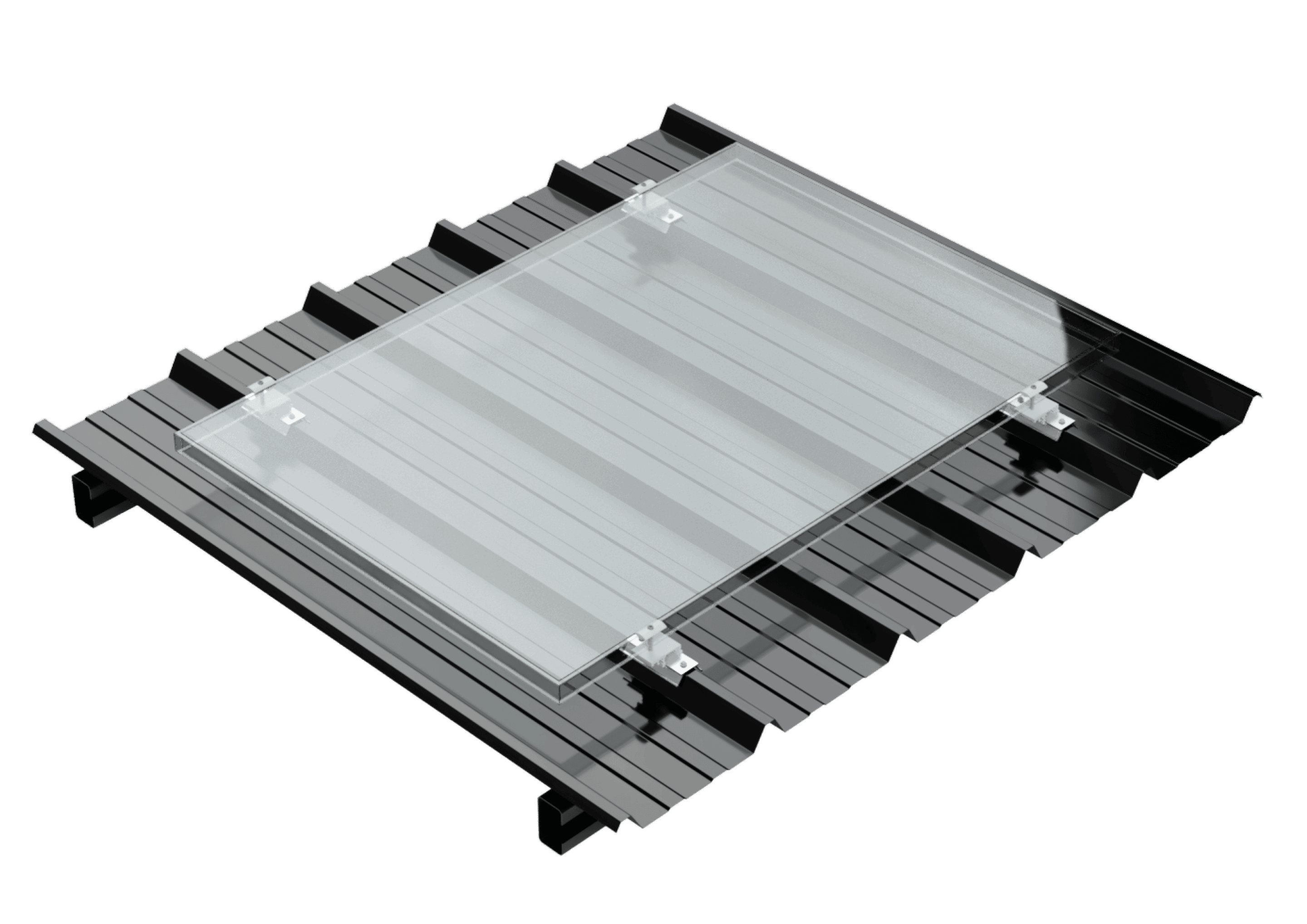

EB-Solar is a photovoltaic mounting system for installing solar panels on sloping roofs. It is used on buildings with an uninsulated roof deck (steel deck with a trapezoidal profile).
ETN N°A27T2312
Steel sheet
Landscape orientation
Documentation & Downloads
Request the manual
Contact us for certification
Ask for a service
Advantages of the system
An economical solution of choice
EB-Solar photovoltaic mounting is a cost-effective solution that can be installed on the roof deck. This mounting method consists of mini rails (13 cm) which are delivered pre-drilled and therefore ready to use. Once the External Clamps and then the Universal Clamps have been clipped on, the photovoltaic panels can be installed.
A premium metal: aluminium
The EB-Solar photovoltaic process uses mostly aluminium. This metal has many advantages including being light, strong, recyclable and highly resistant to corrosion.
Certified process
The EB-Solar mounting system is validated by a New Technology Survey (Enquête de Technique Nouvelle – ETN). Mechanical strength and watertightness tests have been carried out. The photovoltaic process has therefore been the subject of experimental campaigns to justify its use in targeted climate zones. This mounting solution for photovoltaic solar panels is tried and tested and is a very good economic alternative.
EB-SOLAR
Technical data
| USE | New roof or total or partial renovation |
| TYPE OF ROOF | Standard steel deck |
| MODULE POSITION | Landscape |
| MATERIALS | Aluminium and stainless steel |
| SYSTEM WEIGHT | < 1 kg/m2 |
| SUPPORTING STRUCTURE | Metal or wooden frame |
| SYSTEM COMPONENTS | 0.13 m aluminium rail (pre-drilled and fitted with an PVC seal), universal aluminium/stainless steel clamps, external clamps with aluminium/stainless steel finish, generator connector, Module Grounding Connector, locking screws |
Benefit from training and first worksite assistance
Our experts share their tips and practical advice for quick and efficient installation
