UTILISATION

Toiture neuve ou rénovation (hors amiante), totale ou partielle
COUVERTURE

Plaques en fibres-ciment
ORIENTATION DU MODULE

Paysage
POIDS DU SYSTÈME

1 kg/m2
STRUCTURE PORTEUSE

Charpente métallique ou bois

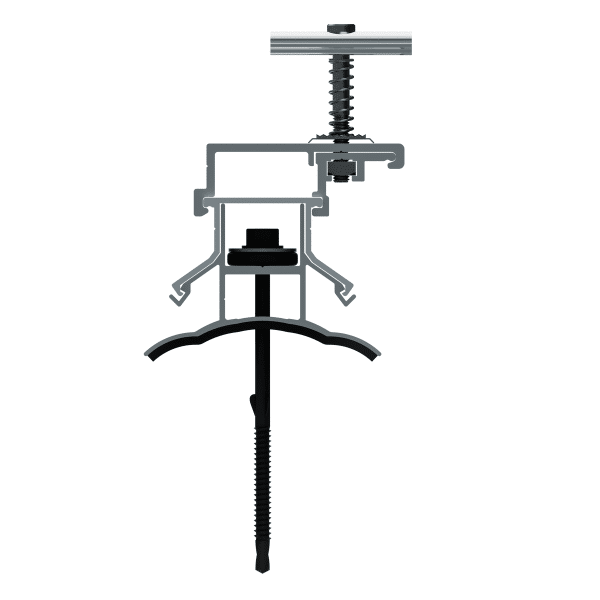

COMPOSANTS DU SYSTÈME

Rail abouté aluminium 6060
Support de rail et éclisse aluminium 6060 + joint PVC
Fixation universelle (MALT modules incluse) et fixation
extérieure de finition aluminium 6060/inox
Connecteur bas de générateur aluminium 6060
Connecteur Terre Rail (CTR) aluminium 6060
Connecteur Terre Module (CTM) aluminium 6060
OPTIONS

Collier passe-câble polyamide
Vis panne acier
ETN - Enquête de Technologie Nouvelle
Made in France Made in France
Compatibilité couverture : plaques ondulées en fibres-ciment

Plaques ondulées ETERNIT 177x51 FR - 5 ou 6 ondes
Evaluations techniques Fabricant Nom du module Longueur Largeur Épaisseur Classe de puissance (WC)
ETN YINGLI YLxxxD-37e 1/2 1722 1134 30 390/395/400/405/410/415
ETN YINGLI YLxxxCF48 i/2 1762 1134 30 430/435/440/445/450/455
ETN YINGLI YLxxxCF54 e/2 1722 1134 30 420/425/430/435/440/445
ETN YINGLI YLxxxDF54 e/2 1722 1134 30 390/395/400/405/410/415
ETN DA DAS-DH96NE 1762 1134 30 435/440/445/450/455/460
ETN DA DAS-DH96NE 1762 1134 30 435/440/445/450/455/460
ETN DA DAS-DH96NE.A 1762 1134 30 435/440/445/450/455/460
ETN DA DAS-DH108NE 1961 1134 30 490/495/500/505/510/515
ETN DA DAS-DH108NE.A 1961 1134 30 490/495/500/505/510/515
ETN RISEN RSM96-11-xxxBNDG 1762 1134 30 440/445/450/455/460/465/470/475
ETN RISEN RSM108-11-xxxBNDG 1961 1134 30 495/500/505/510/515/520/525/530
ETN JINKO JKMxxxN-54HL4R-V 1762 1134 30 435/440/445/450/455/460
ETN JINKO JKMxxxN-48HL4M-BDV 1762 1134 30 445/450/455/460/465/470
ETN JINKO JKMxxxN-48HL4M-DB 1762 1134 30 450/455/460/465
ETN JINKO JKMxxxN-48HL4M-DV 1762 1134 30 450/455/460/465/470
ETN JINKO JKMxxxN-54HL4M-BDV 1961 1134 30 495/500/505/510/515/520/525
ETN JINKO JKMxxxN-60HL4-V 1906 1134 30 475/480/485/490/495/500
ETN JINKO JKMxxxM-60HL4-V 1903 1134 30 450/455/460/465/470
ETN LONGI LR8-48HGD-xxxM 1762 1134 30 430/435/440/445/450/455
ETN LONGI LR7-54HVH-xxxM 1800 1134 30 475/480/485/490
ETN DUONERGY DN-BT108N-4-xxx 1762 1134 30 450
ETN CANADIAN TOPHiKu6 CS6.2-48TD-xxx ALL BLACK 1762 1134 30 435/440/445/450/455
ETN CANADIAN TOPHiKu6 CS6.2-48TD-xxx 1762 1134 30 435/440/445/450/455/460
ETN LONGI LR7-54HTH-xxxM 1800 1134 30 455/460/465
ETN LONGI LR7-54HTB-xxxM 1800 1134 30 450/455/460/465/470
ETN LONGI LR7-60HTH-xxxM 1990 1134 30 505/510/515
ETN LONGI LR7-60HTB-xxxM 1990 1134 30 500/505/510/515/520
ETN AIKO AIKO-Axxx-MAH60Db 1954 1134 30 500/505/510/515
ETN TRINA TSM-xxxNEG9R.28 1762 1134 30 430/435/440/445/450/455/460
ETN AIKO AIKO-Axxx-MAH54Dw 1757 1134 30 455/460/465/470
ETN AIKO AIKO-Axxx-MAH54Tm 1762 1134 30 430/435/440/445/450
ETN AIKO AIKO-Axxx-MAH60Mb 1954 1134 30 500/505/510/515
ETN AIKO AIKO-Axxx-MAH60Dw 1954 1134 30 505/510/515/520/525
ETN AIKO AIKO-Axxx-MAH60Mw 1954 1134 30 505/510/515/520/525
ETN DMEGC DMxxxM10RT-B54HBT 1762 1134 30 455/460
ETN DMEGC DMxxxM10RT-B54HBW 1762 1134 30 455/460
ETN DMEGC DMxxxM10RT-G54HBW 1762 1134 30 460
ETN DMEGC DMxxxM10RT-B60HBT 1950 1134 30 505/510/515
ETN DMEGC DMxxxM10RT-54HBW-V 1762 1134 30 445/450/455
ETN VOLTEC TARKA 110 VSMP xxx 1868 1070 35 435/440/445/450/455/460
ETN VOLTEC TARKA 110 VSBP xxx 1868 1070 35 435/440/445/450/455/460
ETN VOLTEC TARKA 120 VSMP xxx 1868 1170 35 475/480/485/490/495/500
ETN VOLTEC TARKA 120 VSBP xxx 1868 1170 35 475/480/485/490/495/500
ETN AIKO AIKO-Axxx-MAH54Mb 1757 1134 30 440/445/450/455/460
ETN AIKO AIKO-Axxx-MAH54Mw 1757 1134 30 450/455/460/465
ETN AIKO AIKO-Axxx-MAH54Db 1757 1134 30 440/445/450/455/460
ETN DMEGC DMxxxM10RT-B54HBT 1762 1134 30 435/440/445/450
ETN DMEGC DMxxxM10RT-B60HBT 1950 1134 30 485/490/495/500
ETN DMEGC DMxxxM10RT-B54HSW 1762 1134 30 440/445/450
ETN DMEGC DMxxxM10RT-B54HBW 1762 1134 30 440/445/450
ETN DMEGC DMxxxM10RT-B54HST 1762 1134 30 435/440/445/450
ETN DMEGC DMxxxM10RT-60HBW-V 1950 1134 35 490/495/500
ETN DMEGC DMxxxM10RT-60HBB-V 1950 1134 35 485/490/495/500
ETN DMEGC DMxxxM10RT-B60HST 1950 1134 30 485/490/495/500
ETN DMEGC DMxxxM10RT-54HBB-V 1762 1134 30 435/440/445/450
ETN DMEGC DMxxxM10RT-G54HSW 1762 1134 30 435/440/445/450
ETN DMEGC DMxxxM10RT-G54HBW 1762 1134 30 435/440/445/450
ETN DMEGC DMxxxM10RT-60HSW-V 1950 1134 35 490/495/500
ETN DMEGC DMxxxM10RT-54HSW-V 1762 1134 30 440/445/450
ETN DMEGC DMxxxM10RT-54HBW-V 1762 1134 30 440/445/450
ETN DAS DAS-DH108NA-xxx 1722 1134 30 420/425/430/435/440
ETN DAS DAS-DH108ND-xxx 1800 1134 30 435/440/445/450/455
ETN JINKO JKMxxxN-54HL4R-BDV 1762 1134 30 420/425/430/435/440
ETN DUONERGY DN-BT108N-3-xxx 1722 1134 30 425
ETN DUONERGY DN-BT120HJT-2-xxx 1755 1038 30 375
ETN JINKO JKMxxxN-54HL4R-V 1762 1134 30 425/430/435/440/445/450
ETN JINKO JKMxxxN-54HL4R-B 1762 1134 30 425/430/435/440/445
ETN JINKO JKMxxxN-60HL4-V 1903 1134 30 470/475/480/485/490
ETN JINKO JKMxxxM-54HL4-V 1722 1134 30 400/405/410/415/420
ETN SYSTOVI SYSxxxDA007 1762 1134 30 435/440/445
ETN LONGI LR5-54HIBD-xxxM 1722 1134 30 390/395/400/405/410/415
ETN LONGI LR5-54HPB-xxxM 1722 1134 30 400/405/410/415/420
ETN LONGI LR5-54HTH-xxxM Explorer 1722 1134 30 420/425/430/435/440
ETN LONGI LR5-54HTH-xxxM Scientist 1722 1134 30 440/445/450
ETN LONGI LR5-54HPH-xxxM 1722 1134 30 405/410/415/420/425
ETN LONGI LR5-54HABB-xxxM 1722 1134 30 395/400/405/410/415
ETN LONGI LR5-54HTB-xxxM Explorer 1722 1134 30 410/415/420/425/430
ETN SUNPOWER SPR-P6-xxx-BLK 1808 1086 30 375
ETN SUNPOWER SPR-P6-xxx-BLK 1808 1086 30 395/400/405/410/415
ETN LONGI LR5-54HABD-xxxM 1722 1134 30 395/400/405/410/415/420
ETN SUNPOWER SPR-P6-xxx-COM-XS 1808 1092 30 400/405/410/415/420
ETN DMEGC DMxxxM6-60HBW 1755 1038 35 370/375/380/385
ETN TONGWEI THxxxPMB7-46SCF 1899 1096 30 420/425/430/435/440
ETN TONGWEI THxxxPMB7-44SCS 1812 1096 30 405/410/415/420/425
ETN TONGWEI THxxxPMB7-44SCF 1812 1096 30 400/405/410/415/420
ETN TONGWEI THxxxPMB7-46SCS 1899 1096 30 425/430/435/440/445
ETN RISEN RSM40-8-xxxM 1754 1096 30 390/395/400/405/410/415
ETN VOLTEC TARKA 126 VSMS anti-éblouissement 1835 1042 35 375/380/385
ETN VOLTEC TARKA 126 VSMD 1835 1042 35 385/390/395/400
ETN VOLTEC TARKA 126 VSMS 1835 1042 35 385/390/395/400
ETN DMEGC DMxxxM10-54HSW-V 1722 1134 30 395/400/405/410
ETN DMEGC DMxxxM6-60HSW 1755 1038 35 370/375/380/385
ETN DMEGC DMxxxM10-54HBW-V 1722 1134 30 400/405/410/415
ETN JA JAM54S30-xxx/MR 1722 1134 30 390/395/400/405/410/415
ETN DMEGC DMxxxM10-B54HBT 1722 1134 30 395/400/405/410
ETN DMEGC DMxxxM10-54HBW-V 1708 1134 30 395/400/405/410
ETN DMEGC DMxxxM10-54HBB-V 1708 1134 30 395/400/405/410
ETN DUONERGY DN-BT108N-2-xxx 1722 1134 30 410/415/420
ETN DUONERGY DN-BT108N-xxx 1722 1134 30 400/405/410/415/420
ETN DUONERGY DN-BT120N-xxx 1773 1046 30 370/375/380/385/390
ETN DUONERGY DN-BT120HJT-A-xxx 1755 1038 30 375
ETN DUONERGY DN-BT120HJT-2-xxx 1755 1038 30 375
ETN CANADIAN CS6R-xxxMS 1722 1134 30 395/400/405/410/415/420
ETN CANADIAN CS3L-xxxP 1765 1048 35 335/340/345/350/355/360
ETN GCL GCL-xxxM8/60Hxxx 1766 1048 35 375/380/385
ETN JINKO JKMxxxN-54HL4-V 1722 1134 30 410/415/420/425/430
ETN JINKO JKMxxxN-54HL4R-V 1762 1134 30 425/430/435/440/445
ETN TRINA TSM-xxxDEG18MC.20 (II) 2187 1102 35 490/495/500/505
ETN TALESUN TP7F54M(H)-xxx 1722 1134 30 395/400/405/410/415
ETN TRINA TSM-xxxNEG9.28 1770 1096 30 400/405/410/415/420/425
ETN TRINA TSM-xxxNEG9R.28 1762 1134 30 415/420/425/430/435/440
ETN TRINA TSM-xxxDE09R.08 1762 1134 30 415/420/425/430/435
ETN TRINA TSM-xxxDE09R.05 1762 1134 30 405/410/415/420/425
ETN SYSTOVI OPTYMO PRO xxx Fond Noir 17305 11455 40 375/380/385/390/395/400
ETN SYSTOVI OPTYMO PRO xxx Fond Blanc 17305 11455 40 400/405/410
ETN TALESUN TP6L60M-xxx 1755 1038 35 360/365/370/375/380
ETN TALESUN TP6L60M(H)-xxx 1755 1038 35 360/365/370/375/380
ETN TALESUN TP7F54M-xxx 1722 1134 30 395/400/405/410/415
ETN RECOM SILLIA RCM-xxx-SMK 1646 1140 30 375/380/385/390/395/400
ETN ALEO LEO Black L82Sxxx 1564 1144 40 335/340/345/350
ETN ALEO LEO Black L84Sxxx 1752 1144 40 380/385/390/395
ETN ALEO LEO L62Sxxx 1564 1144 40 350/355/360/365
ETN ALEO LEO L64Sxxx 1752 1144 40 395/400/405/410
ETN LONGI LR4-60HIH-xxxM 1755 1038 30 365/370/375/380
ETN LONGI LR5-54HIB-xxxM 1722 1134 30 395/400/405/410
ETN LONGI LR5-54HIH-xxxM 1722 1134 30 400/405/410/415
ETN RECOM SILLIA RCM-xxx-SMD1 1899 1096 30 425/430/435/440/445
ETN LONGI LR4-60HIB-xxxM 1755 1038 35 345/350/355/360/365/370
ETN LONGI LR4-60HIH-xxxM 1755 1038 35 360/365/370/375/380
ETN LONGI LR4-66HIH-xxxM 1924 1038 35 400/405/410/415/420
ETN LONGI LR4-72HIH-xxxM 2094 1038 35 425/430/435/440/445/450/455
ETN JINKO JKMxxxM-60H-V 1684 1002 30 325/330/335/340
ETN DMEGC DMxxxG1-60HSW 1684 1002 35 325/330/335/340
ETN TRINA TSM-xxxDE09.08 1754 1096 30 390/395/400/405
ETN TRINA TSM-xxxDEG18MC.20 (II) 2187 1102 35 480/485/490/495/500
ETN TRINA TSM-xxxDEG8MC.20 (II) 1773 1046 30 355/360/365/370/375
ETN LONGI LR4-60HIBD-xxxM 1755 1038 30 350/355/360/365/370/375
ETN QCELLS Q.PEAK DUO G7 xxx 1685 1000 32 325/330/335
ETN QCELLS Q.PEAK DUO ML G9 xxx 1840 1030 32 375/380/385/390
ETN QCELLS Q.PEAK DUO G6 xxx 1740 1030 32 345/350/355/360
ETN QCELLS Q.PEAK DUO G8 xxx 1740 1030 32 340/345/350/355/360
ETN EURENER MEPVxxx-L 1640 992 35 300/305/310
ETN EURENER MEPVxxx-L 1640 992 40 300/305/310
ETN EURENER PEPVxxx-L 1640 992 40 270/275/280/285
ETN QCELLS Q.PEAK DUO BLK G6+ xxx 1740 1030 32 330/335/340/345
ETN SYSTOVI V-SYS PRO PS19xxxN14 16475 9875 35 300/305/310
ETN SYSTOVI V-SYS PRO PS75xxxN17 16635 10005 35 315/320/325/330
ETN EURENER PEPVxxx-L 1640 992 35 270/275/280/285
ETN EURENER MEPVxxx 1640 992 35 320
ETN EURENER MEPVxxx 1640 992 40 320
ETN VIESSMANN Vitovolt 300 MxxxPE 1675 992 35 320/325
ETN VIESSMANN Vitovolt 300 MxxxWA 1622 1068 35 335/340
ETN VIESSMANN Vitovolt 300 MxxxWB 1650 992 35 300/305/310/315/320
ETN LONGI LR4-60HPH-xxxM 1755 1038 35 350/355/360/365/370
ETN LONGI LR4-72HBD-xxxM 2094 1038 35 425/430
ETN LONGI LR4-72HPH-xxxM 2094 1038 35 425/430/435/440
ETN HYUNDAI HiE-SxxxVG 1719 1140 35 390/395/400
ETN BENQ-AUO PM060MB4_xxx 1696 1022 40 315/320/325
ETN BENQ-AUO PM060MW4_xxx 1696 1022 40 295/300/305/310/315/320/325/330
ETN LONGI LR4-60HBD-xxxM 1755 1038 30 350/355/360
ETN LONGI LR4-60HPB-xxxM 1755 1038 35 345/350
ETN DMEGC DMxxx-M156-60BK 1650 992 35 295/300/305/310
ETN REC RECxxxAA 1721 1016 30 360/365/370
ETN REC RECxxxNP 1675 997 30 305/310/315/320/325/330
ETN REC RECxxxTP2M 1675 997 38 300/305/310/315/320/325/330
ETN DMEGC DMHxxxM6-120SW 1675 992 35 315/320
ETN DMEGC DMHxxxM6A-120SW 1684 1002 35 325
ETN DMEGC DMHxxxP6-120SW 1675 992 35 280/285/290/295
ETN DMEGC DMxxx-M156-60 1650 992 35 305/310
ETN SUNPOWER SPR-E20-xxx-COM 2067 1046 46 435
ETN SUNPOWER SPR-P3-xxx-COM-1500 2066 998 40 405/410/415
ETN AEG AS-M605-xxx 1640 992 35 290/295/300/305/310
ETN AEG AS-P605-xxx 1640 992 40 270/275/280/285
ETN LONGI LR6-60PE-xxxM 1650 991 40 280/285/290/295/300/305/310
ETN REC RECxxxTP2 1675 997 38 275/280/285/290/295/300
ETN RECOM SILLIA 60Pxxx-V 1660 990 50 250/255/260
ETN SUNPOWER SPR-E20-xxx 1559 1046 46 327
ETN JINKO JKMxxxPP-60 1650 992 40 255/260/265/270
ETN LONGI LR6-60HPH-xxxM 1672 991 40 295/300/305/310/315/320
ETN LONGI LR6-60PB-xxxM 1650 991 40 280/285/290/295/300/305/310

Installations photovoltaïques

Un dépôt régional de restauration professionnelle s’équipe de panneaux photovoltaïques
Nos fixations sur une toiture fibres-ciment d’un bâtiment agricole
Pour installer cette application sur votre téléphone ou tablette :
ouvrir le menu partage puis sélectionner "Ajouter à l'écran d'accueil
