Use conditions

New or renovated roof, wether total or partial covering
Type of support

Concrete, OSB, corrugated metal sheet. Compressibility insulating class rate C. Waterproof EPDM Firestone liner Rubber Guard in complete adhesion.
Module position

Landscape or Portrait mode
Material

Aluminum, stainless steel, steel, polyamide
System weight

2-kg/m2 excluding the module
System components

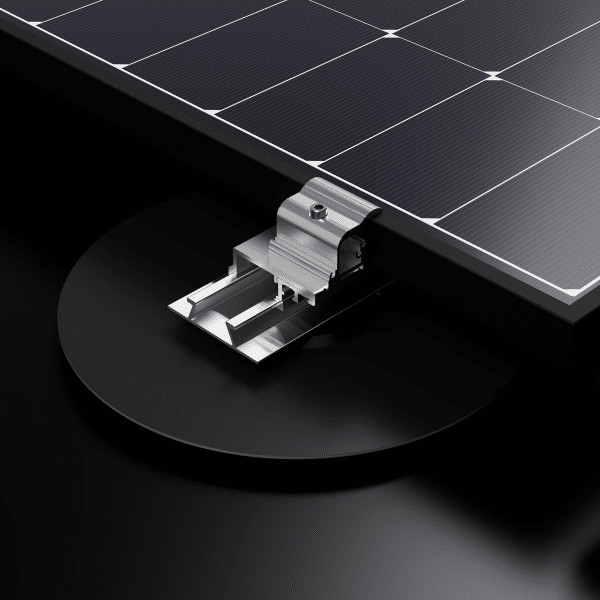

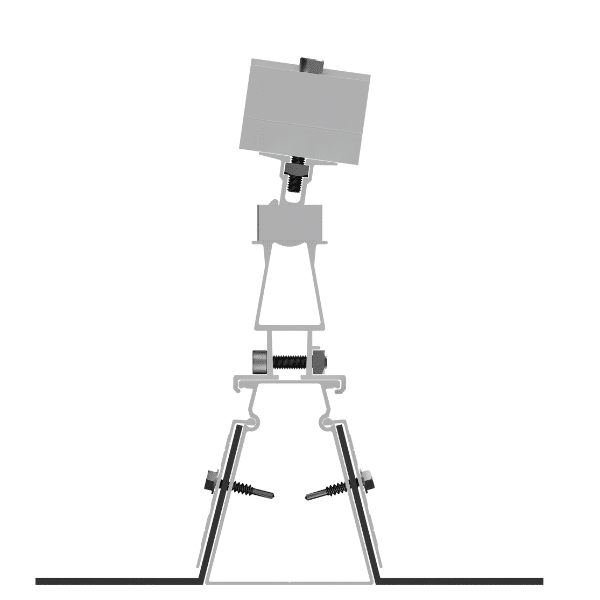

3.3m Aluminum rail, aluminum/stainless steel universal clamp, alu/ stainless steel external clamp, polyamide base
Options

Module Grounding Connector (MGC), cable guide
Compatibility with the waterproofing system EPDM

Fully adhered EPDM waterproofing membrane FIRESTONE RubberGard.
Technical evaluations Manufacturer Module name Length Width Thickness Power class (Wc) Reference
ETN CANADIAN TOPHiKu6 CS6.2-48TD-xxx 1762 1134 30 435/440/445/450/455/460 A27T230E ind02
ETN CANADIAN TOPHiKu6 CS6.2-48TD-xxx ALL BLACK 1762 1134 30 435/440/445/450/455 A27T230E ind02
ETN SYSTOVI SYSxxxDA007 1762 1134 30 435/440/445 A27T230E ind01
ETN JA JAM54S30-xxx/MR 1722 1134 30 390/395/400/405/410/415 A27T230E ind0
ETN DMEGC DMxxxM10-54HSW-V 1722 1134 30 400/405/410/415 A27T230E ind0
ETN DMEGC DMxxxM10-54HSW-V 1708 1134 30 400/405/410/415 A27T230E ind0
ETN TRINA TSM-xxxDE09R.08 1762 1134 30 415/420/425/430/435 A27T230E ind0
ETN JINKO JKMxxxN-54HL4R-V 1762 1134 30 425/430/435/440/445 A27T230E ind0
ETN LONGI LR5-54HIH-xxxM 1722 1134 30 400/405/410/415 A27T200A ind05
ETN LONGI LR5-54HIB-xxxM 1722 1134 30 395/400/405/410 A27T200A ind05
ETN SYSTOVI OPTYMO PRO xxx Fond Blanc 17305 11455 40 400/405/410 A27T200A ind04
ETN SYSTOVI OPTYMO PRO xxx Fond Noir 17305 11455 40 375/380/385/390/395/400 A27T200A ind04
ETN TRINA TSM-xxxDEG18MC.20 (II) 2187 1102 35 480/485/490/495/500 A27T200A ind03
ETN SUNPOWER SPR-MAX3-XXX 1690 1046 40 390/395/400 A27T200A ind02
ETN SUNPOWER SPR-MAX3-XXX-COM 1690 1046 40 370/375/380/385/390/395/400 A27T200A ind02
ETN SUNPOWER SPR-MAX3-XXX-BLK 1690 1046 40 355/360/365/370/375 A27T200A ind02
ETN SYSTOVI V-SYS PRO PS73xxxN07 16635 10005 35 300/305/310/315/320/325/330 A27T200A ind01
ETN SYSTOVI V-SYS PRO PS73xxxN04 16635 10005 35 300 A27T200A ind01
ETN SYSTOVI V-SYS PRO PS18xxxN07 16475 9875 35 300/305/310 A27T200A ind01
ETN SYSTOVI V-SYS PRO PS75xxxN17 16635 10005 35 315/320/325/330 A27T200A ind01
ETN SYSTOVI V-SYS PRO PS19xxxN14 16475 9875 35 300/305/310 A27T200A ind01
ETN SYSTOVI V-SYS PRO PS75xxxN17 16635 10005 35 325 A27T200A ind0
ETN SYSTOVI V-SYS PRO PS73xxxN07 16635 10005 35 320 A27T200A ind0
ETN SYSTOVI V-SYS PRO PS19xxxN14 16475 9875 35 305 A27T200A ind0
ETN SYSTOVI V-SYS PRO PS18xxxN07 16475 9875 35 300 A27T200A ind0
ETN SUNPOWER SPR-MAX3-xxx-BLK 1690 1046 40 375 A27T200A ind0
ETN SUNPOWER SPR-MAX3-xxx-BLK 1690 1046 40 355 A27T200A ind0
ETN SUNPOWER SPR-E19-xxx 1559 1046 46 320 010T160P ind0
ETN RECOM SILLIA 60Pxxx 1660 990 50 250/255/260 010T160P ind0
ETN SUNPOWER SPR-E20-xxx 1559 1046 46 327 010T160P ind0
ETN SOLARWORLD Sunmodule Plus SWxxx 1675 1001 33 290/295/300 010T160P ind0
