| Use conditions Closed building, new or renovated roof, total or partial covering |
| Type of support Concrete, ribbed steel sheets, wood, "C" class compressibility insulation, TPO waterproof coating (min. 1.5 mm) |
| Module position Landscape mode |
| Materials Aluminum, stainless steel and TPO |
| System weight 4 kg/m² excluding the module |

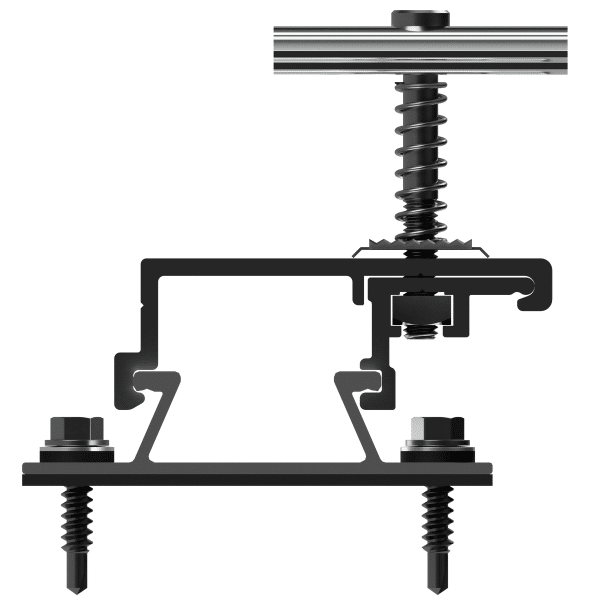

| System components 1.2 m or 0.6 m aluminum rail equipped with support bands, "Y" rail, aluminum flat section (for inclination of up to 15°), external clamp with an aluminum/Stainless steel finish, Rail Grounding Connector, cable guide |
| Options Module Grounding Connector |
| Technical evaluations | Manufacturer | Module name | Length | Width | Thickness | Power class (Wc) | Reference |
|---|---|---|---|---|---|---|---|
| ETN | LONGI | LR7-72HVD-xxxM | 2382 | 1134 | 30 | 635/640/645 | L.24.08227av1 |
| ETN | LONGI | LR7-72HVH-xxxM | 2382 | 1134 | 30 | 635/640/645/650 | L.24.08227av1 |
| ETN | LONGI | LR7-54HVD-xxxM | 1800 | 1134 | 30 | 475/480/485/490/495/500 | L.24.08227av1 |
| ETN | LONGI | LR7-54HVH-xxxM | 1800 | 1134 | 30 | 475/480/485/490 | L.24.08227av1 |
| ETN | LONGI | LR8-48HGD-xxxM | 1762 | 1134 | 30 | 430/435/440/445/450/455 | L.24.08227av1 |
| ETN | JINKO | JKMxxxN-54HL4R(-V) | 1762 | 1134 | 30 | 430/435/440/445/450 | L.24.08227av1 |
| ETN | DMEGC | DMxxxM10RT-54HSW/HBW(-V) | 1762 | 1134 | 30 | 445/450/455/460/465 | L.24.08227av1 |
| ETN | VOLTEC | TARKA 126 VSMS | 1835 | 1042 | 35 | 385/390/395 | L.20.05086av4 |
| ETN | SYSTOVI | SYSxxxDA007 | 1762 | 1134 | 30 | 435/440/445 | L.20.05086av4 |
| ETN | CANADIAN | CS6R-xxxMS | 1722 | 1134 | 30 | 395/400/405/410/415/420 | L.20.05086av4 |
| ETN | CANADIAN | CS6W-xxxT | 2278 | 1134 | 30 | 560/565/570/575/580/585 | L.20.05086av3 |
| ETN | CANADIAN | CS6R-xxxT | 1722 | 1134 | 30 | 420/425/430/435/440 | L.20.05086av3 |
| ETN | SYSTOVI | OPTYMO PRO xxx White | 17305 | 11455 | 40 | 400/405/410/415 | L.20.05086av2 |
| ETN | SYSTOVI | OPTYMO PRO xxx Black | 17305 | 11455 | 40 | 375/380/385/390/395/400 | L.20.05086av2 |
| ETN | HAREON | HR-xxx-24/Aa | 1580 | 808 | 45 | 180/185/190/195/200/205 | L.20.05086av2 |
| ETN | DMEGC | DMHxxx7P6-120SW | 1675 | 992 | 40 | 290/295/300/305 | L.20.05086av2 |
| ETN | DMEGC | DMxxxG1-60HSW | 1684 | 1002 | 35 | 330/335/340/345 | L.20.05086av2 |
| ETN | SUNPOWER | SPR-P3-xxx-COM-1500 | 2066 | 998 | 35 | 405/410/415/420 | L.20.05086av1 |
| ETN | SUNEKA | SKAxxxM72-WN | 1580 | 808 | 35 | 185/190 | L.20.05086av1 |
| ETN | YINGLI | YLxxxD-30b (-1500V) | 1665 | 1002 | 35 | 320/325/330/335 | L.20.05086 |
| ETN | VOLTEC | TARKA 120HC VSMS | 1685 | 1000 | 42 | 320/325/330 | L.20.05086 |
| ETN | TRINA | TSM-xxxDEG15MC.20 (II) | 2031 | 1011 | 30 | 390/395/400/405/410 | L.20.05086 |
| ETN | TRINA | TSM-xxxPE06H | 1650 | 996 | 35 | 285/290/295/300 | L.20.05086 |
| ETN | TRINA | TSM-xxxDE15M (II) | 2015 | 996 | 35 | 390/395/400/405/410/415 | L.20.05086 |
| ETN | TRINA | TSM-xxxDE06M.08 (II) | 1690 | 996 | 35 | 325/330/335/340 | L.20.05086 |
| ETN | TRINA | TSM-xxxDD06M05 (II) | 1690 | 996 | 35 | 310/315/320/325/330/335 | L.20.05086 |
| ETN | TALESUN | TP660M-xxx | 1665 | 1002 | 30 | 315/320/325/330 | L.20.05086 |
| ETN | TALESUN | TP660P-xxx | 1665 | 1002 | 35 | 275/280/285/290/295 | L.20.05086 |
| ETN | TALESUN | TD6G60M-xxx | 1705 | 1011 | 30 | 320/325/330/335/340 | L.20.05086 |
| ETN | SYSTOVI | V-SYS PRO PS75xxxN17 | 16635 | 10005 | 35 | 315/320/325/330 | L.20.05086 |
| ETN | SYSTOVI | V-SYS PRO PS73xxxN07 | 16635 | 10005 | 35 | 300/305/310/315/320/325/330 | L.20.05086 |
| ETN | SYSTOVI | V-SYS PRO PS19xxxN14 | 16475 | 9875 | 35 | 300/305/310/315/320 | L.20.05086 |
| ETN | SYSTOVI | V-SYS PRO PS18xxxN07 | 16475 | 9875 | 35 | 300/305/310 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO G8+ xxx | 1740 | 1030 | 32 | 340/345/350/355/360 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO G8 xxx | 1740 | 1030 | 32 | 340/345/350/355/360 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO G6+ xxx | 1740 | 1030 | 32 | 345/350/355 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO ML G9+ xxx | 1840 | 1030 | 32 | 375/380/385/390/395 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO BLK G8 xxx | 1740 | 1030 | 32 | 335/340/345/350 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO BLK G8+ xxx | 1740 | 1030 | 32 | 335/340/345/350 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO ML G9 xxx | 1840 | 1030 | 32 | 375/380/385/390/395 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO G6 xxx | 1740 | 1030 | 32 | 340/345/350/355 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO BLK G6+ xxx | 1740 | 1030 | 32 | 330/335/340/345 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO BLK G6 xxx | 1740 | 1030 | 32 | 330/335/340/345 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO BLK ML G9+ xxx | 1840 | 1030 | 32 | 365/370/375/380/385 | L.20.05086 |
| ETN | QCELLS | Q.PEAK DUO BLK ML G9 xxx | 1840 | 1030 | 32 | 365/370/375/380/385 | L.20.05086 |
| ETN | LONGI | LR4-60HPB-xxxM | 1755 | 1038 | 35 | 345/350/355/360/365/370 | L.20.05086 |
| ETN | LONGI | LR4-60HBD-xxxM | 1755 | 1038 | 35 | 350/355/360/365/370/375/380 | L.20.05086 |
| ETN | LONGI | LR4-60HPH-xxxM | 1755 | 1038 | 35 | 350/355/360/365/370/375/380 | L.20.05086 |
| ETN | JINKO | JKMxxxM-60H(-V) | 1684 | 1002 | 35 | 325/330/335/340/345 | L.20.05086 |
| ETN | HYUNDAI | HiE-SxxxSI | 1942 | 1069 | 40 | 410/415/420 | L.20.05086 |
| ETN | HYUNDAI | HiE-SxxxSG | 1622 | 1068 | 35 | 340/345/350 | L.20.05086 |
