USAGE

New or renovation roofing, total or partial
COVERAGE

Steel deck 3.45, minimum thickness 75/100
MODULE ORIENTATION

Portrait
SYSTEM WEIGHT

1 kg/m²
SUPPORT STRUCTURE

Purlin spacing up to 2 m (wood or steel)

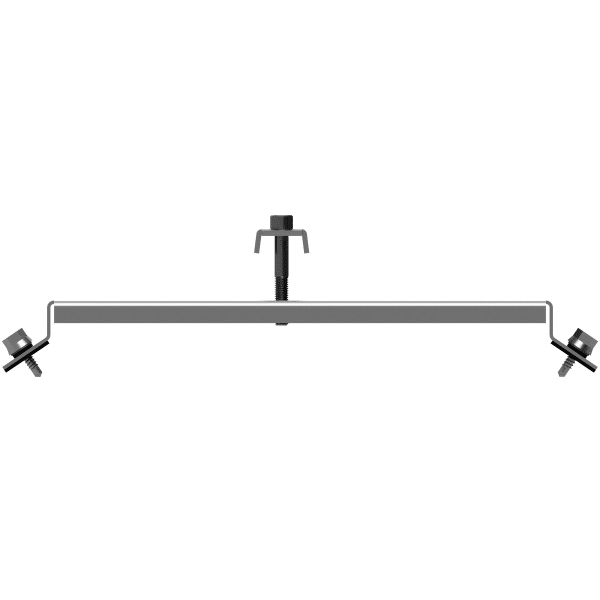

SYSTEM COMPONENTS

Stainless steel 304L or 316L plate (depending on environment)
Stainless steel 304L or 316L clamp (depending on environment), pre-assembled in factory
Central clamps ensuring grounding upon tightening
Zamac screws for attaching the plates
OPTION

Ground Module Connector (GMC) in 6060 aluminum
Technical evaluations Manufacturer Module name Length Width Thickness Power class (Wc) Reference
ETN DMEGC DMxxxM10-54HBW 1722 1134 30 400/405/410/415 A27T2202ind03
ETN DMEGC DMxxxM10-54HBW-V 1722 1134 30 400/405/410/415 A27T2202ind03
ETN DMEGC DMxxxM10-54HSW 1722 1134 30 400/405/410/415 A27T2202ind03
ETN DMEGC DMxxxM10-54HSW-V 1722 1134 30 400/405/410/415 A27T2202ind03
ETN RISEN RSM40-8-xxxM 1754 1096 30 390/395/400/405/410/415 A27T2202ind01
ETN JA JAP60S01-xxx/SC 1650 991 35 260/265/270/275/280 010T171S ind04
ETN JA JAP60S09-xxx/SC 1657 996 35 270/275/280 010T171S ind04
ETN REC RECxxxTP2 1675 997 38 275/280/285/290/295/300 010T171S ind05
ETN REC RECxxxTP2M 1675 997 38 300/305/310/315/320 010T171S ind05
ETN JA JAM60S10-xxx/MR 1689 996 35 325/330/335 010T171S ind04
ETN JA JAM60S09-xxx/PR 1657 996 35 310/315/320/325 010T171S ind04
ETN JA JAM60S01-xxx/PR 1650 991 35 300/305/310/315/320 010T171S ind04
ETN SOLARWATT Vision 60P 1680 990 40 270/275/280/285/290 010T171S ind03
ETN SOLARWATT Blue 60P (B) 1680 990 40 265/270/275 010T171S ind03
ETN CS WISMAR Excellent Glass/Glass xxxM60 Black 1700 1000 40 275/280/285 010T171S ind02
ETN CS WISMAR Excellent xxxP60 1700 1000 40 260/265/270/275 010T171S ind01
ETN CS WISMAR Excellent Glass/Glass xxxM60 Smart 1700 1000 40 275/280/285 010T171S ind02
ETN CS WISMAR Excellent Glass/Glass xxxM60 Balance 1700 1000 40 275/280/285 010T171S ind02
ETN CS WISMAR Professional Glass/Glass xxxP60 Smart 1700 1000 40 255/260/265/270/275 010T171S ind02
ETN YINGLI YLxxxC-30b 1650 990 40 255/260/265/270/275/280 010T171S ind0
ETN YINGLI YLxxxP-29b 1650 990 40 230/235/240/245/250/255/260 010T171S ind0
ETN VOLTEC VSMS-M-xxx 1650 990 42 220/225/230/235/240/245/250/255/260/265/270 010T171S ind0
ETN VOLTEC VSPS-H-xxx 1650 990 42 225/230/235/240/245/250/255/260/265/270/275 010T171S ind0
ETN TALESUN TP660P-xxx 1640 990 35 255/260/265/270/275/280/285 010T171S ind0
ETN SOLARWORLD Sunmodule Protect SW xxx Poly 1675 1001 33 200/205/210/215/220/225/230/235/240/245/250/255/260/265/270/275/280/285/290/295/300 010T171S ind0
ETN SOLARWORLD Sunmodule Plus SW xxx Poly 1675 1001 33 200/205/210/215/220/225/230/235/240/245/250/255/260/265/270/275/280/285/290/295/300 010T171S ind0
ETN CSUN CSUNxxx-60M 1640 990 35 210/215/220/225/230/235/240/245/250/255/260/265/270 010T171S ind0
ETN CSUN CSUNxxx-72M 1580 808 35 170/175/180/185/190/195/200 010T171S ind0
ETN SOLARWORLD Sunmodule Plus SW xxx Mono 1675 1001 33 200/205/210/215/220/225/230/235/240/245/250/255/260/265/270/275/280/285/290/295/300 010T171S ind0
ETN SOLARWORLD Sunmodule Plus SW xxx Mono Black 1675 1001 33 200/205/210/215/220/225/230/235/240/245/250/255/260/265/270/275/280/285/290/295/300 010T171S ind0
ETN CSUN CSUNxxx-60P 1640 990 35 210/215/220/225/230/235/240/245/250/255 010T171S ind0
ETN BENQ-AUO PM245P00_xxx 1639 983 40 240/245/250/255/260 010T171S ind0
ETN BENQ-AUO PM096B00_xxx 1559 1046 46 325/330/335 010T171S ind0
ETN BENQ-AUO PM060MB2_xxx 1640 992 40 290/295/300/305/310 010T171S ind0
ETN BENQ-AUO PM060MW2_xxx 1640 992 40 290/295/300/305/310 010T171S ind0
ETN BENQ-AUO PM060PW1_xxx 1640 992 40 250/255/260/265/270 010T171S ind0
ETN ATERSA A-xxxP 1645 990 40 240/245/250 010T171S ind0
ETN ATERSA A-xxxM 1645 990 40 255/260/265 010T171S ind0
