USAGE

New or renovation roofing, total or partial
COVERAGE

Steel deck 3.45, minimum thickness 63/100
MODULE ORIENTATION

Landscape
SYSTEM WEIGHT

< 1 kg/m²
SUPPORT STRUCTURE

Purlin spacing up to 2 m (wood or steel)

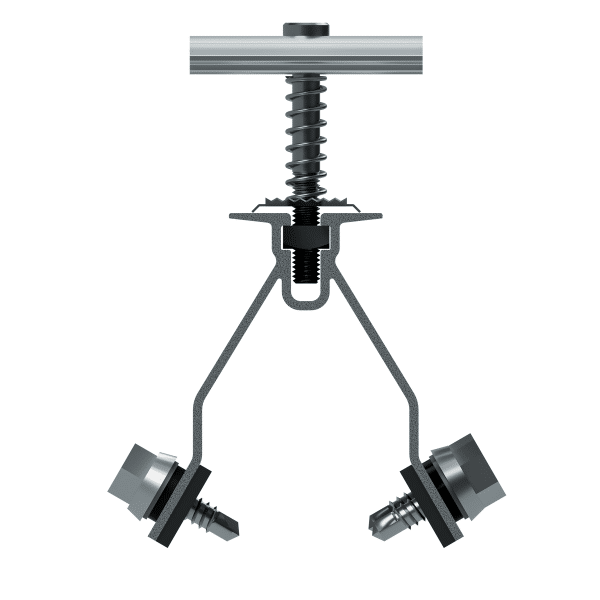

SYSTEM COMPONENTS

Aluminum 6060 T6 plates + EPDM seals
304L or 316L stainless steel clamps (depending on environment), pre-assembled in factory Central clamps ensuring grounding upon tightening
Zamac screws for attaching the plates
OPTION

Ground Module Connector (GMC) in 6060 aluminum
Technical evaluations Manufacturer Module name Length Width Thickness Power class (Wc) Reference
ETN LONGI LR7-72HVD-xxxM 2382 1134 30 635/640/645 L.24.08899av1
ETN LONGI LR7-72HVH-xxxM 2382 1134 30 635/640/645/650 L.24.08899av1
ETN LONGI LR7-54HVD-xxxM 1800 1134 30 475/480/485/490/495/500 L.24.08899av1
ETN LONGI LR7-54HVH-xxxM 1800 1134 30 475/480/485/490 L.24.08899av1
ETN LONGI LR8-48HGD-xxxM 1762 1134 30 430/435/440/445/450/455 L.24.08899av1
ETN VOLTEC TARKA 126 VSMS Full Black 1835 1042 35 375/380/385 L.24.08899
ETN VOLTEC TARKA 126 VSMS 1835 1042 35 385/390/395 L.24.08899
ETN VOLTEC TARKA 126 VSBD 1835 1042 35 380/385/390 L.24.08899
ETN VOLTEC TARKA 126 VSMD 1835 1042 35 385/390/395 L.24.08899
ETN TRINA TSM-xxxDEG18MC.20 (II) 2187 1102 35 490/495/500/505 L.24.08899
ETN TRINA TSM-xxxNEG9R.28 1762 1134 30 425/430/435/440/445/450 L.24.08899
ETN TRINA TSM-xxxNEG9.28 1770 1096 30 400/405/410/415/420/425 L.24.08899
ETN TRINA TSM-xxxDE09R.08 1762 1134 30 415/420/425/430/435 L.24.08899
ETN TRINA TSM-xxxDE09R.05 1762 1134 30 405/410/415/420/425 L.24.08899
ETN QCELLS Q.PEAK DUO XL G11.3/7 BFG xxx 2416 1134 35 570/575/580/585 L.24.08899
ETN QCELLS Q.PEAK DUO M-G11S(+) xxx 1722 1134 30 400/405/410/415/420 L.24.08899
ETN QCELLS Q.PEAK DUO ML-G11S.2 xxx 2092 1134 30 490/495/500/505/510 L.24.08899
ETN QCELLS Q.PEAK DUO BLK M-G11S(+) xxx 1722 1134 30 390/395/400/405/410 L.24.08899
ETN QCELLS Q.PEAK DUO ML G11A.2+ xxx 2054 1134 32 480/485/490/495/500 L.24.08899
ETN QCELLS Q.PEAK DUO BLK M-G11(A)(+) xxx 1692 1134 30 380/385/390/395/400 L.24.08899
ETN QCELLS Q.PEAK DUO M-G11(A)(+) xxx 1692 1134 30 390/395/400/405/410 L.24.08899
ETN LONGI LR7-72HTH-xxxM 2382 1134 30 605/610/615/620 L.24.08899
ETN LONGI LR7-54HTH-xxxM 1800 1134 30 455/460/465 L.24.08899
ETN LONGI LR5-54HTD-xxxM 1722 1134 30 415/420/425/430/435/440 L.24.08899
ETN LONGI LR5-54HTH-xxxM 1722 1134 30 420/425/430/435/440 L.24.08899
ETN LONGI LR5-54HTB-xxxM 1722 1134 30 415/420/425/430/435 L.24.08899
ETN LONGI LR5-72HPH-xxxM 2278 1134 35 545/550/555/560/565 L.24.08899
ETN LONGI LR5-72HTH-xxxM 2278 1134 35 560/565/570/575/580 L.24.08899
ETN LONGI LR5-72HBD-xxxM 2278 1134 30 535/540/545/550/555 L.24.08899
ETN LONGI LR5-66HPH-xxxM 2094 1134 35 495/500/505/510/515 L.24.08899
ETN LONGI LR5-54HABB-xxxM 1722 1134 30 395/400/405/410/415 L.24.08899
ETN LONGI LR5-54HABD-xxxM 1722 1134 30 395/400/405/410/415/420 L.24.08899
ETN LONGI LR5-54HPB-xxxM 1722 1134 30 400/405/410/415/420 L.24.08899
ETN LONGI LR5-72HIH-xxxM 2278 1134 35 535/540/545/550/555 L.24.08899
ETN LONGI LR5-54HPH-xxxM 1722 1134 30 405/410/415/420/425 L.24.08899
ETN LONGI LR5-54HIBD-xxxM 1722 1134 30 390/395/400/405/410/415 L.24.08899
ETN LONGI LR5-72HIBD-xxxM 2278 1134 35 530/535/540/545/550 L.24.08899
ETN LONGI LR5-54HIH-xxxM 1722 1134 30 400/405/410/415/420 L.24.08899
ETN LONGI LR5-54HIB-xxxM 1722 1134 30 395/400/405/410/415 L.24.08899
ETN JNE JLS120MxxxW (SMALL) 1755 1038 35 355/360/365/370/375 L.24.08899
ETN JNE JLS144MxxxW 2102 1040 35 435/440/445/450/455 L.24.08899
ETN JNE JLS120MxxxW 1763 1040 35 360/365/370/375/380 L.24.08899
ETN JNE JLS108MxxxW 1724 1134 30 390/395/400/405/410 L.24.08899
ETN JINKO JKMxxxN-60HL4-V 1906 1134 30 470/475/480/485/490 L.24.08899
ETN JINKO JKMxxxM-54HL4(-V) 1722 1134 30 400/405/410/415/420 L.24.08899
ETN JINKO JKMxxxN-54HL4R(-V) 1762 1134 30 425/430/435/440/445/450 L.24.08899
ETN JINKO JKMxxxN-54HL4R-B 1762 1134 30 425/430/435/440/445 L.24.08899
ETN JINKO JKMxxxN-54HL4R-BDV 1762 1134 30 420/425/430/435/440 L.24.08899
ETN JINKO JKMxxxN-54HL4-B 1722 1134 30 400/405/410/415/420 L.24.08899
ETN JINKO JKMxxxN-54HL4(-V) 1722 1134 30 410/415/420/425/430 L.24.08899
ETN JA JAM72S30-xxx/MR 2279 1134 35 530/535/540/545/550/555 L.24.08899
ETN JA JAM54D40-xxx/GB 1722 1134 30 410/415/420/425/430/435 L.24.08899
ETN JA JAM54S30-xxx/MR 1722 1134 30 390/395/400/405/410/415 L.24.08899
ETN DMEGC DMxxxM10RT-B60HST/HBT 1950 1134 30 485/490/495/500 L.24.08899
ETN DMEGC DMxxxM10RT-60HBB(-V) 1950 1134 35 485/490/495/500 L.24.08899
ETN DMEGC DMxxxM10RT-B54HST/HBT 1762 1134 30 435/440/445/450 L.24.08899
ETN DMEGC DMxxxM10RT-G54HSW/HBW 1762 1134 30 435/440/445/450 L.24.08899
ETN DMEGC DMxxxM10RT-60HSW/HBW(-V) 1950 1134 35 490/495/500 L.24.08899
ETN DMEGC DMxxxM10RT-B54HSW/HBW 1762 1134 30 440/445/450/455 L.24.08899
ETN DMEGC DMxxxM10RT-54HBB(-V) 1762 1134 30 435/440/445/450 L.24.08899
ETN DMEGC DMxxxM10RT-54HSW/HBW(-V) 1762 1134 30 440/445/450 L.24.08899
ETN DMEGC DMxxxM10T-B54HST/HBT 1722 1134 30 415/420/425/430 L.24.08899
ETN DMEGC DMxxxM10T-B54HSW/HBW 1722 1134 30 415/420/425/430 L.24.08899
ETN DMEGC DMxxxM10T-54HSW/HBW(-V) 1722 1134 30 420/425/430/435 L.24.08899
ETN CANADIAN CS6W-xxxT 2278 1134 30 560/565/570/575/580/585 L.24.08899
ETN CANADIAN CS6R-xxxT 1722 1134 30 420/425/430/435/440 L.24.08899
ETN CANADIAN CS6R-xxxMS 1722 1134 30 395/400/405/410/415/420 L.24.08899
ETN CANADIAN CS6R-xxxH-AG 1722 1134 30 415/420/425/430/435/440 L.24.08899
ETN AE AExxxMD-144 2278 1133 30 530/535/540/545/550 L.24.08899
ETN AE AExxxMD-132 2094 1133 30 485/490/495/500/505 L.24.08899
ETN AE AExxxMD-108BS 1721 1133 30 395/400/405/410/415 L.24.08899
ETN JA JAM72D40-xxx/GB 2278 1134 30 555/560/565/570/575/580 L.24.08899
ETN JA JAM54D40-xxx/LB 1762 1134 30 435/440/445/450/455 L.24.08899
